Made from quality Japanese Exedy clutch components.

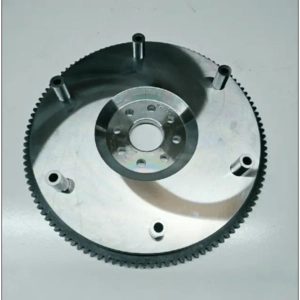

• Australian made Billet Flywheel
• 3x factory clamping force in 300mm Diametre
• Only suited to cars with clutch booster servos fitted
• Japanese made flat face bearing (fitted with machined flat side to clutch fingers)
• Smooth engagement
• Rated to 1400wnm

Kit includes

• Throw out bearing
• Modified 4000lb pressure plate 300mm
• Exedy 300mm – organic disc 24 spline x 25.5mm
• Exedy spigot bush 20.6 OD x 16 ID x 20mm wide
• Aligner tool 24 spline x 25.5mm to 16mm spigot
• Australian made 14kg billet flywheel

Clutch Package dimensions:

• Carton 1: 38 x 38 x 15cm 14kg
• Carton 2: 38 x 38 x 15cm 15kg

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Full face Twin ceramic suited to track and street up to 1000whp
• Individually hand built and tested
• Fully rebuildable
• Accessories available

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing 40mm ID, 50mm round contact face , 16mm thick
• Japanese Toyota spigot bearing  32 OD x 12ID x 9mm
• Plastic aligner tool

Fitment to all JZ engines / R154 Box . This is a push clutch

Push conversion needed on pull type gearboxes

Clutch Package dimensions:

• Carton 1: 32 x 32 x 15cm 14kg

Collection from Albion Brisbane or shipping available anywhere.

Billet 8” Single plate – Recommended for NA Engines seeing over 9000rpm

• Avoiding strap . rivet failures on standard style pressure plates
• Made and assembled in Brisbane using Australian made steels and alloy
• Japan made friction material and spline hubs and diaphragm
• Versatile combinations ceramic and sintered iron + multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel , Turbo 125T or NA 116t Ring gear.
• Japanese sourced throw out bearing BRG2163 WITH 15mm Spacer for all push gearboxes
• Plastic aligner tool

Fitment to all 12A 13B 20B NA engines using push type gearbox

Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions:

• Carton 1: 35 x 35 x 15cm 7kg

Collection from Albion Brisbane or shipping available anywhere.

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2163 for all push gearboxes
• Plastic aligner tool
• Fitment to all 12A 13BT 20BT engines using push type gearbox
• Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 13kg

Collection from Albion Brisbane or shipping available anywhere.

Made in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp
• Individually hand buit and tested
• Fully rebuildable
• Accessories available

Kit includes:

• Clutch kit, flywheel aligner tool GM26

VE Series 2 and VF Commodores

• Utilises factory concentric slave cylinder and spigot bearing .

Clutch Package dimensions: Carton 1: 38 x 38 x 15cm 28kg

Collection from Albion Brisbane or shipping available anywhere.

8 ” Billet twin plate ceramic SR20DET

Made and hand assembled in Brisbane using Australian made steels and alloys

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types in NIS24 & GM26
• Individually hand built and tested
• Fully rebuildable
• Made and assembled in Brisbane using Australian made steels and alloys + Exedy frictions and small parts

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2149 / RCT4064S / GSB for all push gearboxes
• Plastic aligner tool 25.5 x 24spline
• Japan made Exedy spigot bush
• Fitment to all SR engines using push type gearbox
• This is a PUSH Clutch
• ARP crank to Flywheel bolt set available as an option

Clutch Package dimensions: 35 x 35 x 15cm 14kg

Collection from Albion Brisbane or shipping available anywhere.

DSC Twin 270mm dual friction 1500nm clutch  kit

• Medium Pedal effort
• Smooth engagement
• Ideal for late good hp cars seeing street duties
• 750rwhp / 1500nm of non abuse use

Kit includes

• Clutch kit 270mm 1 organic + 1 ceramic disc
• VE LS Flywheel inc 167Tooth ring gear
• AP Concentric slave cylinder
• Genuine pressure plate bolt set + safety washers
• Exedy spigot bearing
• Exedy Alignment tool
• Fitting instructions

The ceramic disc in this clutch can squawk from time to time.

This clutch requires run in before full power use.

This clutch is NOT suited to drifting or 3^rd gear power skid use

Clutch Package dimensions:

• Carton 1: 38 x 38 x 15cm 19kg
• Carton 2: 32 x 32 x 12cm 3kg

 Collection from Albion Brisbane or shipping available anywhere.
