Made and hand assembled in Brisbane using Australian made steels and alloys

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types in NIS24 & GM26
• Individually hand built and tested
• Fully rebuildable
• Made and assembled in Brisbane using Australian made steels and alloys

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2149 / RCT4064S / GSB for all push gearboxes
• Plastic aligner tool 25.5 x 24spline
• Japan made Exedy spigot bush
• Fitment to all RB engines using push type gearbox
• Push type conversion needed on pull type gearboxes

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 14kg

Collection from Albion Brisbane or shipping available anywhere.

Nissan Patrol TB48 1650nm Organic Ceramic Twin

• High Quality steels and alloys
• Billet steel flywheel
• Exedy Japanese bearing
• Positive – engagement
• Rated to 1650wnm

Kit includes

• Twin plate clutch kit including flywheel 1 organic 1 ceramic disc
• Throw out bearing
• Exedy spigot bush 20.6 OD x 16 ID x 20mm wide
• Aligner tool 24 spline x 25.5mm to 16mm spigot

Clutch Package dimensions:

• Carton 1: 38 x 38 x 15cm 14kg

Collection from Albion Brisbane or shipping available anywhere.

DSC Twin 270mm dual friction 1500nm clutch kit

• Medium Pedal effort
• Smooth engagement
• Ideal for late good hp cars seeing street duties
• 750rwhp / 1500nm of non abuse use

Kit includes

• Clutch kit 270mm 1 organic + 1 ceramic disc
• BA – BF Turbo Flywheel inc 157Tooth ring gear (NOT FG TURBO)
• AP Concentric slave cylinder
• Genuine pressure plate bolt set + safety washers
• Exedy spigot bearing
• Exedy Alignment tool
• Fitting instructions

The ceramic disc in this clutch can squawk from time to time.

This clutch requires run in before full power use.

This clutch is NOT suited to drifting or 3^rd gear power skid

Clutch Package dimensions:

• Carton 1: 38 x 38 x 15cm 19kg
• Carton 2: 32 x 32 x 12cm 3kg

 Collection from Albion Brisbane or shipping available anywhere.

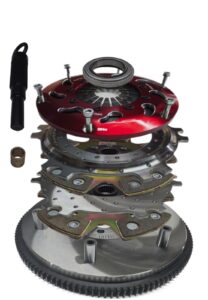

Billet twin plate – 9” – Nissan RB Engines

• Made and assembled in Brisbane using Australian made steels and alloy
• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing 40mm ID, 50mm round contact face , 16mm thick
• Japanese Nissan spigot bush 20.6 OD x 16ID x 20long
• Plastic aligner tool

Fitment to all RB engines using push type gearbox

Push type conversion needed on pull type gearboxes

Clutch Package dimensions:

• Carton 1: 35 x 35 x 15cm 18kg

Collection from Albion Brisbane or shipping available anywhere.

Super smooth twin plate organic

• Street use up to 650hp , non abuse use.
• Assembled and checked in Brisbane
• Rebuildable
• Accessories available

Kit includes

• Clutch kit + Flywheel + Pull push conversion
• Japanese sourced throw out bearing
• Japanese spigot bearing 32OD x 12ID x 9mm
• Plastic aligner tool 29mm x 21 spline x 12mm spigot

Fitment to all JZ engines using R154 Gearbox

Clutch Package dimensions:

• Carton 1: 35 x 35 x 15cm 15kg
• Carton 2 : 25x15x10cm 2kg

Billet 8” Single plate – Recommended for NA Engines seeing over 9000rpm

• Avoiding strap . rivet failures on standard style pressure plates
• Made and assembled in Brisbane using Australian made steels and alloy
• Japan made friction material and spline hubs and diaphragm
• Versatile combinations ceramic and sintered iron + multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel , Turbo 125T or NA 116t Ring gear.
• Japanese sourced throw out bearing BRG2163 WITH 15mm Spacer for all push gearboxes
• Plastic aligner tool

Fitment to all 12A 13B 20B NA engines using push type gearbox

Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions:

• Carton 1: 35 x 35 x 15cm 7kg

Collection from Albion Brisbane or shipping available anywhere.

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing 40mm ID, 50mm round contact face , 16mm thick
• Japanese Toyota spigot bearing  32 OD x 12ID x 9long
• Plastic aligner tool

Fitment to all JZ engines

Push type conversion needed on pull type gearboxes

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 18kg

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2163 for all push gearboxes
• Plastic aligner tool
• Fitment to all 12A 13BT 20BT engines using push type gearbox
• Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 13kg

Collection from Albion Brisbane or shipping available anywhere.

Made in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp
• Individually hand buit and tested
• Fully rebuildable
• Accessories available

Kit includes:

• Clutch kit, flywheel aligner tool GM26

VE Series 2 and VF Commodores

• Utilises factory concentric slave cylinder and spigot bearing .

Clutch Package dimensions: Carton 1: 38 x 38 x 15cm 28kg

Collection from Albion Brisbane or shipping available anywhere.

8 ” Billet twin plate ceramic SR20DET

Made and hand assembled in Brisbane using Australian made steels and alloys

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types in NIS24 & GM26
• Individually hand built and tested
• Fully rebuildable
• Made and assembled in Brisbane using Australian made steels and alloys + Exedy frictions and small parts

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2149 / RCT4064S / GSB for all push gearboxes
• Plastic aligner tool 25.5 x 24spline
• Japan made Exedy spigot bush
• Fitment to all SR engines using push type gearbox
• This is a PUSH Clutch
• ARP crank to Flywheel bolt set available as an option

Clutch Package dimensions: 35 x 35 x 15cm 14kg

Collection from Albion Brisbane or shipping available anywhere.
