JZ 1990-2007

Made from quality Japanese made Exedy parts

• 30% increase factory clamping force.
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Smooth engagement via Japan made Exedy clutch disc
• Rated to 300rwhp / 600nm of non abuse use

Kit includes:

• Modified Japanese made Exedy pressure plate
• Japanese made Exedy 240mm Japan made organic clutch disc 21 spline x 29mm
• Japanese sourced throw out bearing
• Japanese sourced spigot bearing
• Aligner tool 21 spline x 29mm to 12mm spigot
• Fits to std standard 1JZ Turbo flywheel

Clutch Package dimensions:

• Carton 1: 32 x 32 x 15cm 9kg

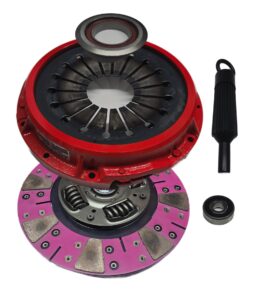

Made from quality Japanese made Exedy parts

• 30% increase factory clamping force.
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Smooth engagement via Japanese made cushion ceramic disc
• Rated to 350rwhp / 900nm of non abuse use

Kit includes:

• Modified Japanese made Exedy pressure plate
• Japanese made Exedy 240mm Japan made cushion ceramic clutch disc 21 spline x 29mm
• Japanese sourced throw out bearing
• Japanese sourced spigot bearing 32 x 12 x 9mm
• Aligner tool 21 spline x 29mm to 12mm spigot
• Fits to std standard 1JZ Turbo flywheel

Clutch Package dimensions:

• Carton 1: 32 x 32 x 15cm 9kg

Collection from Albion Brisbane or shipping available anywhere.

Made from quality Japanese made Exedy parts

• 30% increase factory clamping force.
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Positive engagement via ceramic 5 button clutch disc
• Rated to 350rwhp / 900nm of some abuse

Kit includes:

• Modified Japanese made Exedy pressure plate
• 240mm ceramic clutch disc 21 spline x 29mm
• Japanese sourced throw out bearing
• Japanese sourced spigot bearing 32 x 12 x 9mm
• Aligner tool 21 spline x 29mm to 12mm spigot
• Fits to std standard 1JZ Turbo flywheel

Clutch Package dimensions:

• Carton 1: 32 x 32 x 15cm 9kg

Collection from Albion Brisbane or shipping available anywhere.

Super smooth twin plate organic

• Street use up to 650hp , non abuse use.
• Assembled and checked in Brisbane
• Rebuildable
• Accessories available

Kit includes

• Clutch kit + Flywheel + Pull push conversion
• Japanese sourced throw out bearing
• Japanese spigot bearing 32OD x 12ID x 9mm
• Plastic aligner tool 29mm x 21 spline x 12mm spigot

Fitment to all JZ engines using R154 Gearbox

Clutch Package dimensions:

• Carton 1: 35 x 35 x 15cm 15kg
• Carton 2 : 25x15x10cm 2kg

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing 40mm ID, 50mm round contact face , 16mm thick
• Japanese Toyota spigot bearing  32 OD x 12ID x 9long
• Plastic aligner tool

Fitment to all JZ engines

Push type conversion needed on pull type gearboxes

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 18kg

• M10 x 1.25 x 25mm under head length
• Overall length 35mm
• ½ inch multi hex head
• Sold as a set of 8
• 25 x 15 x 3cm 300gram

Japan sourced quality made unit

• Complete as pictured with all bolts
• Sees a pushed back G measurement of 65mm with BRG2155 bearing fitted
• 30cm x 30cm x 10cm  3kg
