FD 1991-2002

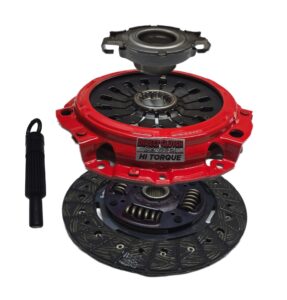

Made from quality Japanese made Exedy parts

• Near 100% increase factory clamping force.
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Smooth engagement
• Rated to 350rwhp

Kit includes:

• Modified Japanese made Exedy SO pressure plate
• Japanese made Exedy 240mm Japan made organic disc 23 spline x 26.3mm
• Japanese sourced throw out bearing
• Aligner tool 23 spline x 26.3mm to 15mm spigot
• Fits to std FD Rx7 Flywheel

Clutch Package dimensions: Carton 1: 32 x 32 x 15cm 9kg

Collection from Albion Brisbane or shipping available anywhere.

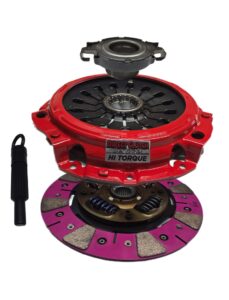

Made from quality Japanese made Exedy parts

• Near 100% increase factory clamping force.
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Smooth engagement
• Rated to 450rwhp

Kit includes:

• Modified Japanese made Exedy SO pressure plate
• Japanese made Exedy 240mm Japan made cushion ceramic disc 23 spline x 26.3mm
• Japanese sourced throw out bearing
• Aligner tool 23 spline x 26.3mm to 15mm spigot
• Fits to std FD Rx7 Flywheel

Clutch Package dimensions: Carton 1: 32 x 32 x 15cm 9kg

Billet 8” Single plate – Recommended for NA Engines seeing over 9000rpm

• Avoiding strap . rivet failures on standard style pressure plates
• Made and assembled in Brisbane using Australian made steels and alloy
• Japan made friction material and spline hubs and diaphragm
• Versatile combinations ceramic and sintered iron + multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel , Turbo 125T or NA 116t Ring gear.
• Japanese sourced throw out bearing BRG2163 WITH 15mm Spacer for all push gearboxes
• Plastic aligner tool

Fitment to all 12A 13B 20B NA engines using push type gearbox

Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions:

• Carton 1: 35 x 35 x 15cm 7kg

Collection from Albion Brisbane or shipping available anywhere.

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2163 for all push gearboxes
• Plastic aligner tool
• Fitment to all 12A 13BT 20BT engines using push type gearbox
• Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 13kg

Collection from Albion Brisbane or shipping available anywhere.

Japan sourced pull push conversion for FD Rx7 Gearboxes

• Complete as pictured including 50mm round face bearing to suit DCS Billet Twin
• Sees a pushed back G measurement of 78mm with BRG2149

Package size

• 30cm x 30cm x 10cm  3kg

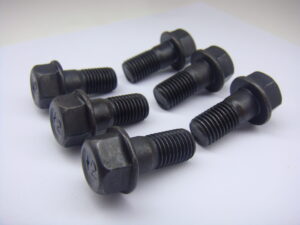

Genuine Mazda Grade 12 Flywheel to counter weight shanked bolt set

• Suits all aftermarket flywheels with 10.20mm hole x 6
• Sold as a set of 6

Genuine Mazda Grade 10 pressure plate to flywheel bolt set

• Suits all 240mm Mazda rotary pressure plates
• M8 x 1.0mm x 16mm
• Sold as a set of 6 with safety washers as pictured
