FC 1987-1992

Genuine Mazda Grade 10 pressure plate to flywheel bolt set

• Suits all 240mm Mazda rotary pressure plates
• M8 x 1.0mm x 16mm
• Sold as a set of 6 with safety washers as pictured

Made from quality Japanese made Exedy parts

• Near 100% increase factory clamping force 2600lb / 1180kg
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Smooth engagement
• Rated to 350rwhp of non abuse use.

Kit includes:

• Modified Japanese made Exedy SO pressure plate
• Japanese made Exedy 240mm Japan made organic disc 23 spline x 26.3mm
• Japanese sourced throw out bearing
• Aligner tool 23 spline x 26.3mm to 15mm spigot
• Fits to std FC Rx7 Flywheel

Clutch Package dimensions: Carton 1: 32 x 32 x 15cm 9kg

Collection from Albion Brisbane or shipping available anywhere.

Made from quality Japanese made Exedy parts

• Near 100% increase factory clamping force 2600lb / 1180kg
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Smooth engagement, with increased heat capacity over organic
• Rated to 450rwhp of some abuse.

Kit includes:

• Modified Japanese made Exedy SO pressure plate
• Japanese made Exedy 240mm Japan made organic disc 23 spline x 26.3mm
• Japanese sourced throw out bearing
• Aligner tool 23 spline x 26.3mm to 15mm spigot
• Fits to std FC Rx7 Flywheel

Clutch Package dimensions: Carton 1: 32 x 32 x 15cm 10kg

Made from quality Japanese made Exedy parts

• Near 100% increase factory clamping force 2600lb / 1180kg
• Medium pedal effort
• Utilizing standard Japan made throw out bearing
• Positive engagement added heat capacity over organic
• Lightest weight disc, will support fastest shifts.
• Rated to 500rwhp of some abuse use.

Kit includes:

• Modified Japanese made Exedy SO pressure plate
• Japanese made Exedy 240mm Japan made organic disc 23 spline x 26.3mm
• Japanese sourced throw out bearing
• Aligner tool 23 spline x 26.3mm to 15mm spigot
• Fits to std FC Rx7 Flywheel

Clutch Package dimensions: Carrton 1: 32 x 32 x 15cm 9kg

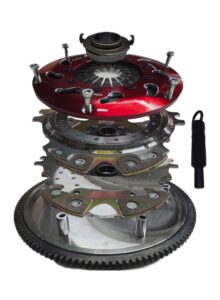

Made and assembled in Brisbane using Australian made steels and alloy

• Japan made friction material and spline hubs and diaphragm
• Versatile combinations 500 to 2000hp , Multiple spline types.
• Individually hand built and tested
• Fully rebuildable
• Accessories available – FW to CW bolt sets

Kit includes

• Clutch kit + Flywheel
• Japanese sourced throw out bearing BRG2163 for all push gearboxes
• Plastic aligner tool
• Fitment to all 12A 13BT 20BT engines using push type gearbox
• Push type conversion needed on pull type gearboxes (FD Rx7)

Clutch Package dimensions: Carton 1: 35 x 35 x 15cm 13kg

Collection from Albion Brisbane or shipping available anywhere.

Genuine Mazda Grade 12 Flywheel to counter weight shanked bolt set

• Suits all aftermarket flywheels with 10.20mm hole x 6
• Sold as a set of 6
